What should Camden Oran Park civil works settle before tender?
Settle the release boundary first. Camden Oran Park civil works are easiest to price and program when each package names the lots or pad it must hand over, the drainage outlet it relies on, and the road connection that gives it access. Earthworks quantities matter, but they do not tell a contractor when a stage can actually be released.
Oran Park and Turner Road are precincts within the NSW Government's South West Growth Area, an area of roughly 10,000 hectares made up of 14 precincts. That regional context explains why so many stages here depend on roads, drainage, and services delivered by other packages. It does not replace the parcel's own consent conditions, issued design, and survey.
Camden's established town and the newer Oran Park centre also bring commercial lots with live frontages and neighbouring businesses. This guide separates the two settings, then covers earthworks, drainage, roads, and handover. For the wider scope NEXTGEN delivers, see the civil infrastructure division overview.

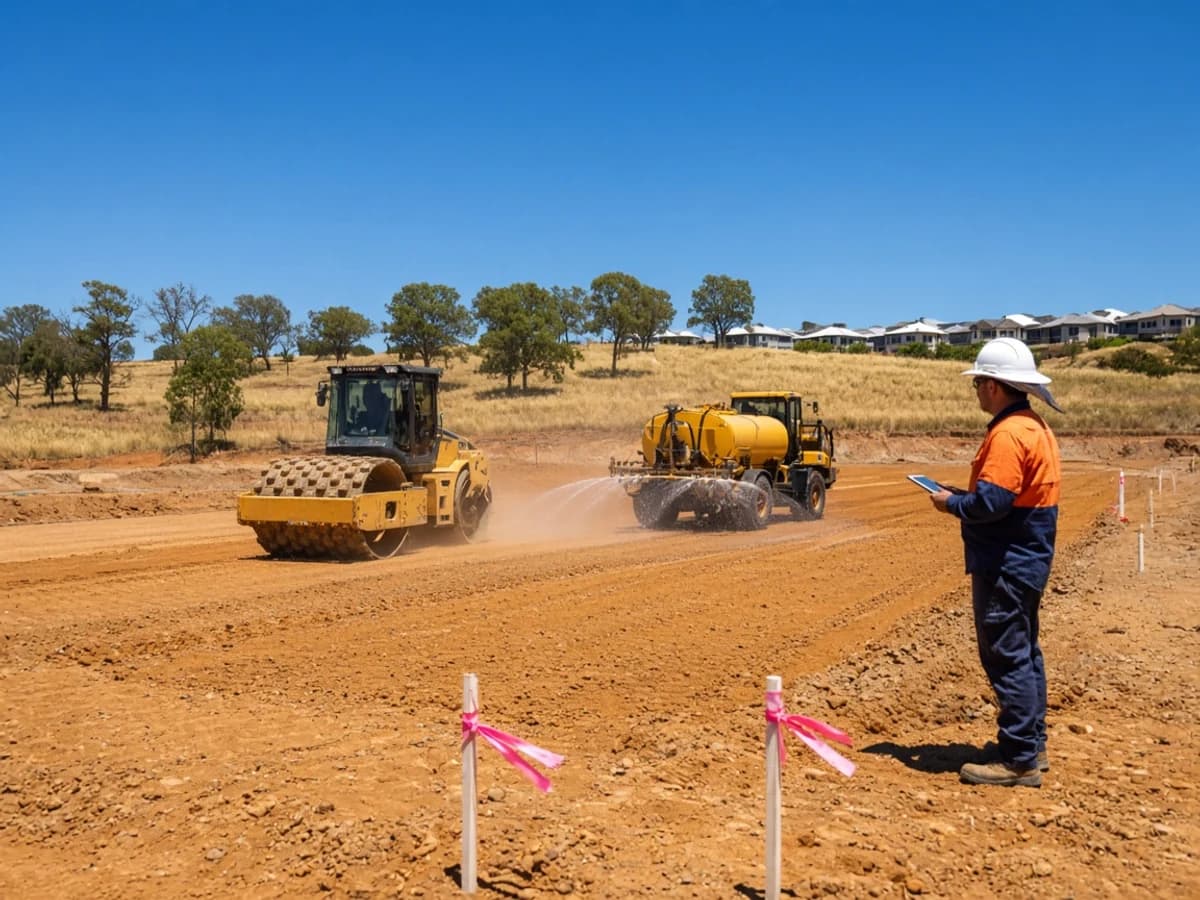

Oran Park subdivision stages: earthworks follow the lot release
On a subdivision, the earthworks Camden Oran Park package should be defined by the lots each following trade needs, not by a single bulk cut-and-fill total. Mark which lots must reach design level first, where the road formation sits, and which areas stay untouched until a later stage. That boundary lets the civil team plan haul routes that do not cross finished pads.
Ground conditions need project-specific evidence. Much of the Cumberland Plain sits on shale-derived clay soils, but the site's geotechnical report, current survey, and design levels decide the method. Ask how unsuitable material, wet-weather softening, and unexpected services will be handled before fill placement starts.
Agree the inspection and testing regime with the designer and geotechnical engineer before work begins. Tie results to identifiable lots and layers so the builder or developer receiving a pad can see exactly what was checked. Record any construction traffic that later crosses accepted lots, and who checks those areas again.
Commercial pads in Oran Park and Camden need a different brief
A commercial site is usually smaller than a subdivision stage but more constrained at its edges. Neighbouring businesses, customer parking, existing kerbs, and live services can all sit within metres of the work. Start the brief at the boundary and record existing levels, entrances, and drainage before deciding where plant and stockpiles can go.
In Camden's established streets, the program often hinges on keeping access open for adjoining properties while a new entrance, car park, or service connection is built. On a newer Oran Park commercial lot, the constraint may instead be a surrounding road or drainage line that another package has not yet finished. Identify which applies before asking for a construction sequence.
Pad tolerance, pavement build-up, and utility tie-ins also need clear owners. NEXTGEN's guide to commercial civil works across NSW covers pad proof and shopfront interfaces in more depth.
Checklist before you issue a Camden or Oran Park tender
Give every tenderer the same definition of a deliverable stage. Where an item is still unknown, list it as a question with a named owner rather than burying it in a general allowance.
- Stage boundary: the lots, pad, or road length to be handed over, plus the area the contractor may occupy.
- Ground: geotechnical report, current survey, design levels, and the process for changed conditions.
- Water: the receiving point, interim basin or diversion design, and who maintains controls after rain.
- Roads: the access route for plant, the connection to the existing network, and any staged traffic arrangements.
- Services: available records, verification responsibility, and the authority or developer accepting each connection.
- Handover: inspection and test records, work-as-executed survey, outstanding defects, and the accepting party.

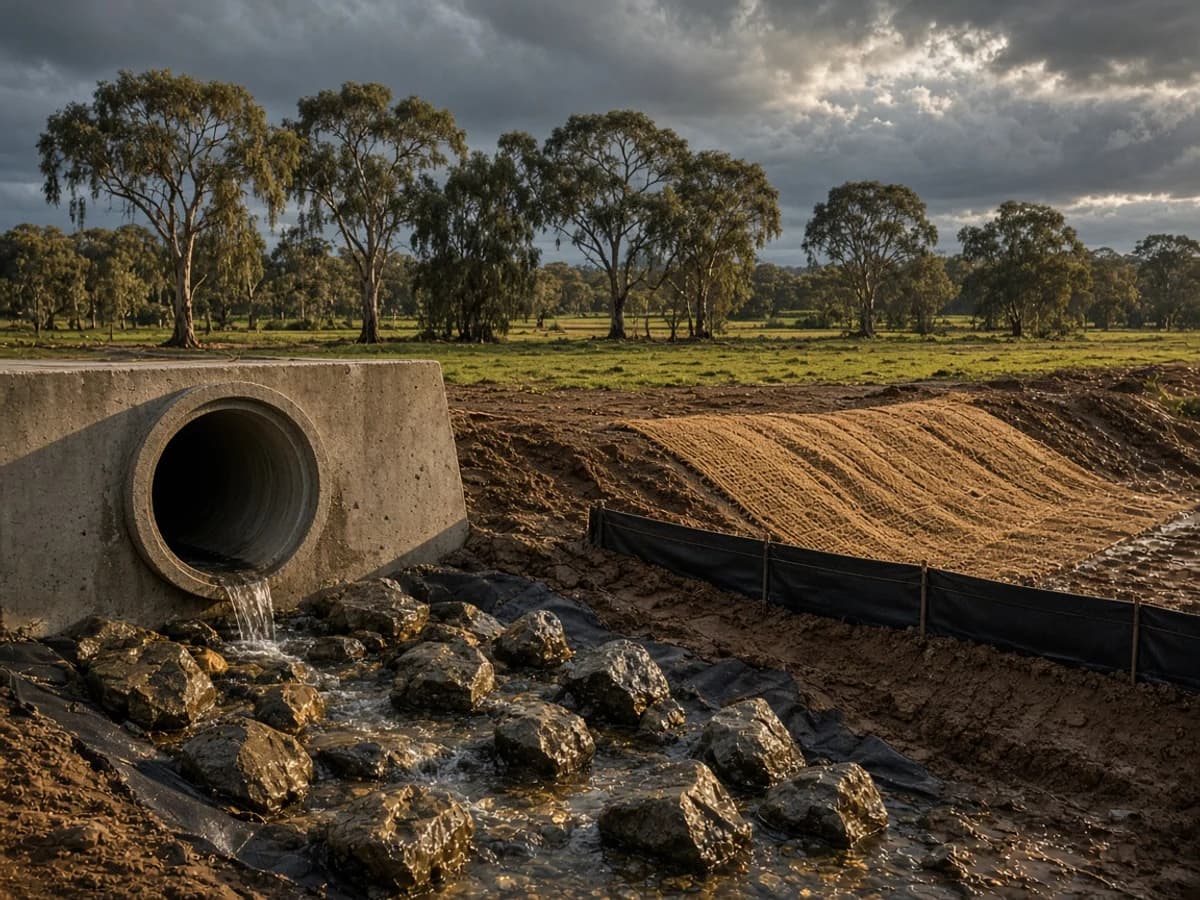

Drainage contractor Camden Oran Park: basins, swales, and the Nepean floodplain
Confirm where water goes before opening more ground. Subdivision stages here often rely on detention basins, swales, and trunk drainage delivered by a separate package, so any interim arrangement needs its own design, inspection, and maintenance owner. A finished pipe run is not proof that the system works.
Closer to Camden's town centre, parts of the Nepean River floodplain are flood-affected. Check the council's flood information and the consent conditions for the parcel before fixing levels, stockpile locations, or the site compound. Do not assume a neighbouring lot's arrangement suits yours.
A drainage contractor Camden Oran Park brief should separate permanent pits, pipes, and headwalls from temporary sediment controls, diversions, and basin maintenance. Ask who inspects controls after rain and who keeps them working once one stage is handed over while the next is still under earthworks.

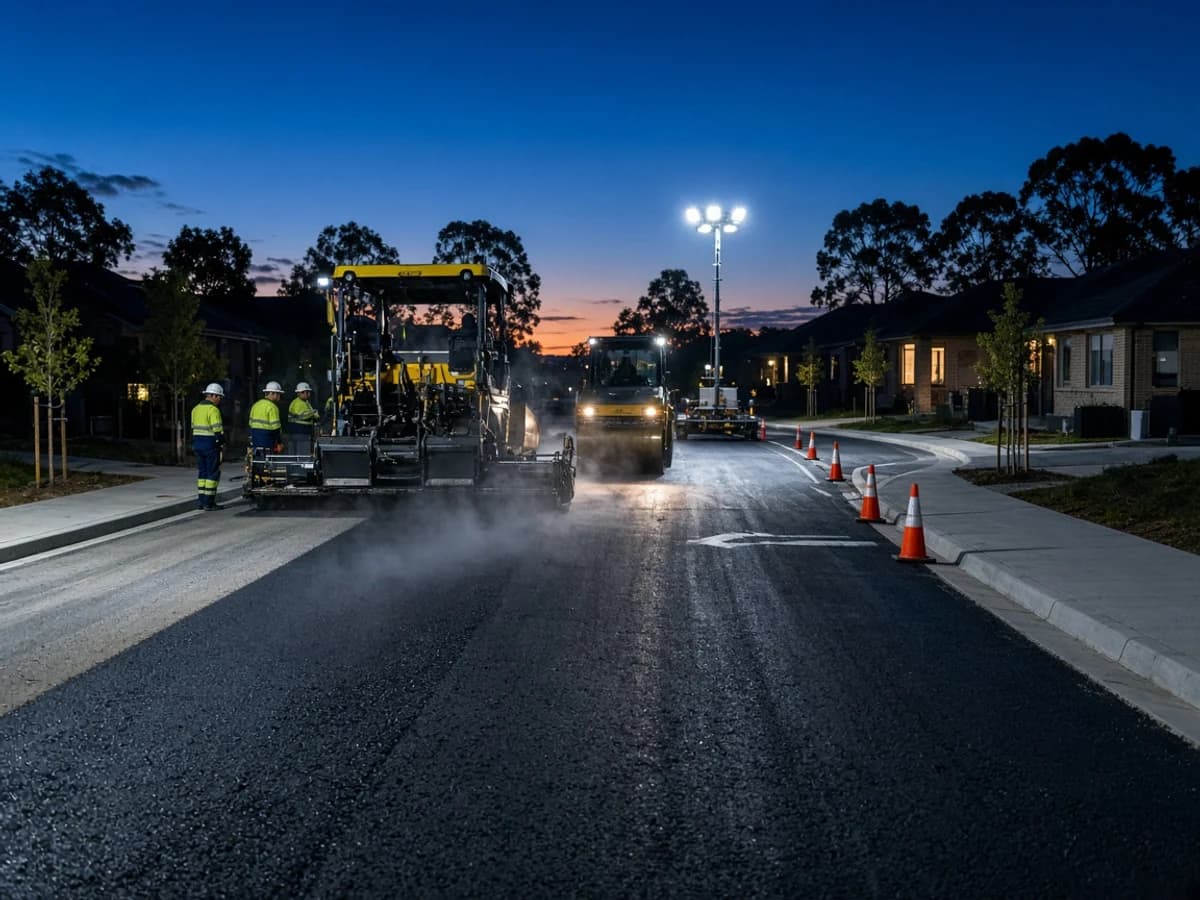

How new streets tie into Camden's collector and arterial roads
Roadworks Camden Oran Park packages rarely stop at the subdivision boundary. A new local street may need to connect with a collector road built by another developer, or with an arterial route such as The Northern Road, which the NSW Government has upgraded through the growth area. Each tie-in brings its own levels, traffic arrangements, and road-authority requirements.
Separate the temporary construction access from the permanent pavement and the final tie-in. State who maintains the temporary surface, who accepts the finished connection, and whether construction traffic will run over new pavement before handover. If one entrance serves several stages, program a defined window to reconstruct it.
Kerb and gutter, pavement layers, line marking, and street-tree pits all depend on the finished road levels agreed with the designer. Use NEXTGEN's roads and pavement division page to frame the road scope so it is priced alongside the earthworks and drainage interfaces.
Compare contractors on interfaces, not just the total price
The infrastructure contractor Camden Oran Park selection should test how each tenderer handles the dependencies in the checklist above. A lower price that assumes a ready drainage outlet or a finished collector road may not be comparable with one that allows for interim works.
Ask for evidence of comparable earthworks, drainage, and road packages, and read each example for its stated scope and status. NEXTGEN's project examples and published scope are one reference point, and the delivery and inquiry FAQs explain how NEXTGEN handles inquiries and mobilisation.
Clarify who coordinates with the developer, the council, and service authorities at each interface. Staged handover works best when one party owns the record of what was accepted, what remains open, and who maintains each asset in the meantime.
Send a staged Camden or Oran Park inquiry
Send the parcel address, drawings, geotechnical information, stage boundaries, target dates, and the open dependency list through the NEXTGEN project inquiry form. Say whether the work is a subdivision stage, a commercial pad, or both.
Ask NEXTGEN to confirm scope fit, the relevant division, mobilisation, and availability for the first stage you need released. A clear answer on that stage gives the developer, designer, and following trades a shared basis for the rest of the program.
